165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts

165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts
165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts 165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts 165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts 165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts
基本情報
起源の場所: 中国
ブランド名: Jiajue
モデル番号: 5130
最小注文数量: 1個
パッケージの詳細: 165-8682 1658682 5130 掘削機スペアパーツ用コントローラー ECU は、顧客の要件に基づいて標準輸出梱包で梱包されています
受渡し時間: 1～5営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、
供給の能力: 100個/月
ベストプライス 接触
詳細情報
製品名: コントローラ 材料: 鋼鉄
起源の場所: 広東省、中国 MOQ: 1
OEM: サポート
ハイライト:

5130 Excavator ECU Controller

,

165-8682 Excavator Controller

,

Excavator Spare Parts ECU

製品の説明

165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts
Product Overview

High-quality replacement Controller ECU designed specifically for 5130 Excavator models. This used component offers reliable performance and comes from rich stock availability.

Product Specifications
Product Name Controller ECU
Part Number 165-8682
Brand Name JIAJUE
Model 5130
Condition Used
Availability Rich Stock
Approximate Weight 5KG
Size (per unit) 25cm x 20cm x 15cm
Delivery Time Usually delivered within 1-3 days after payment

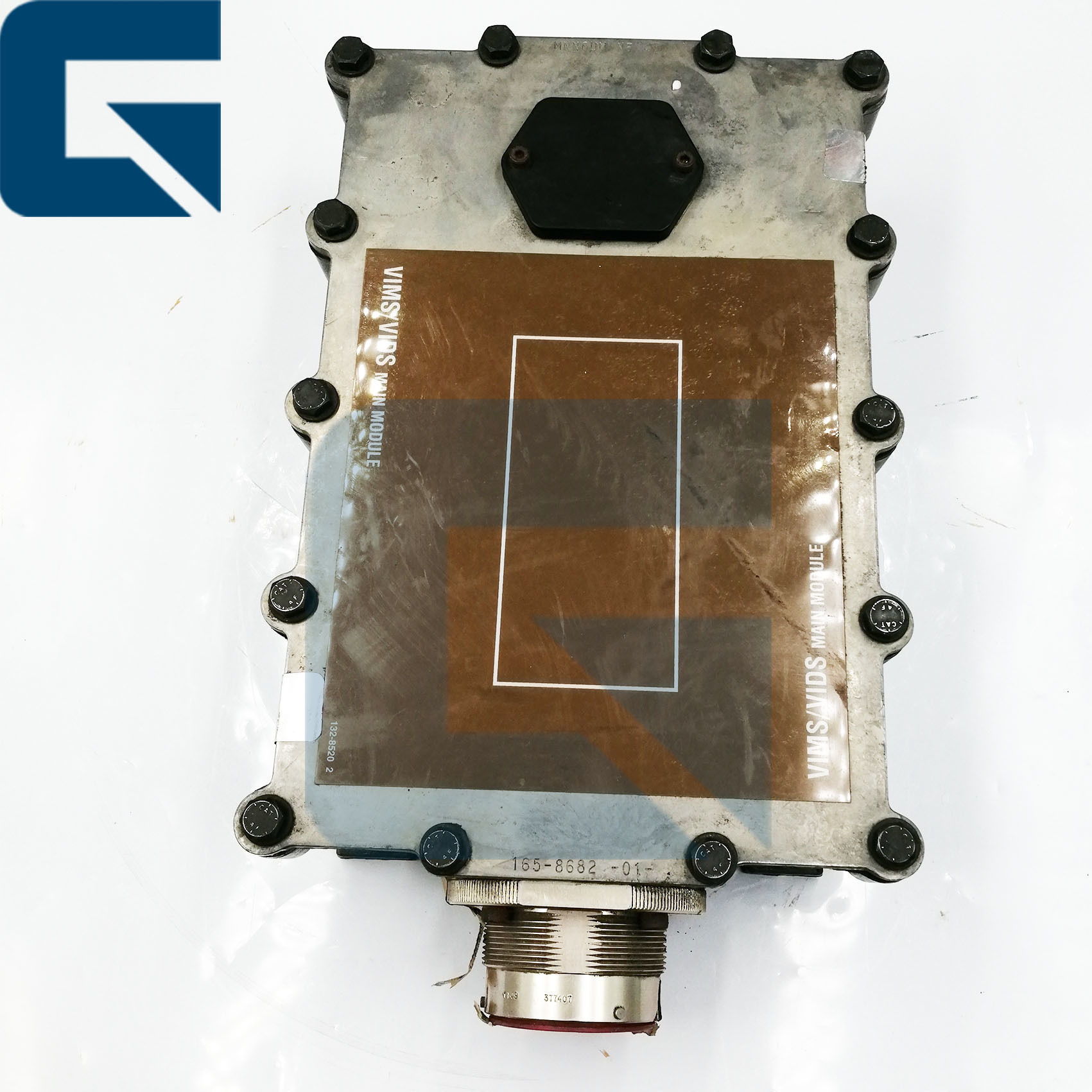

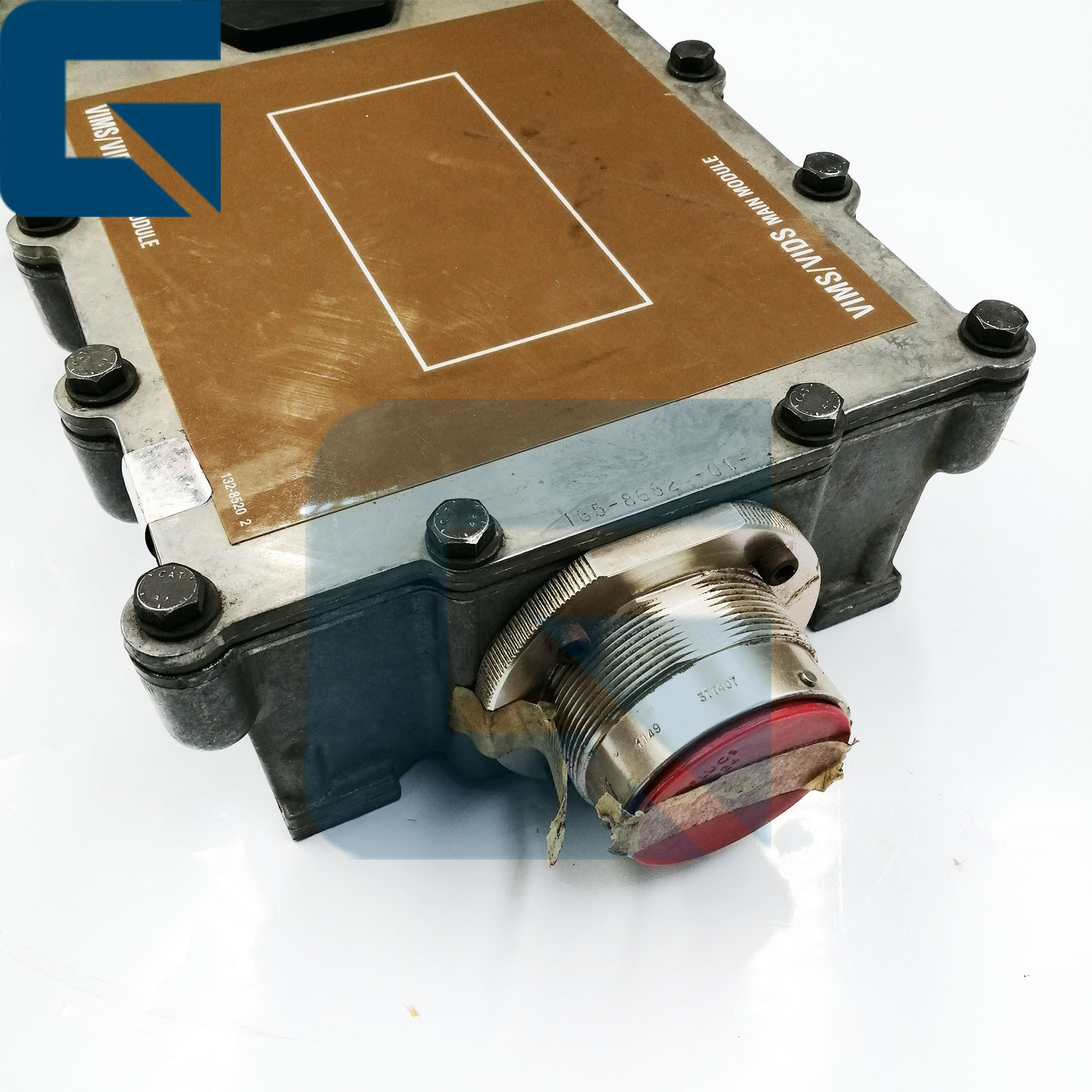

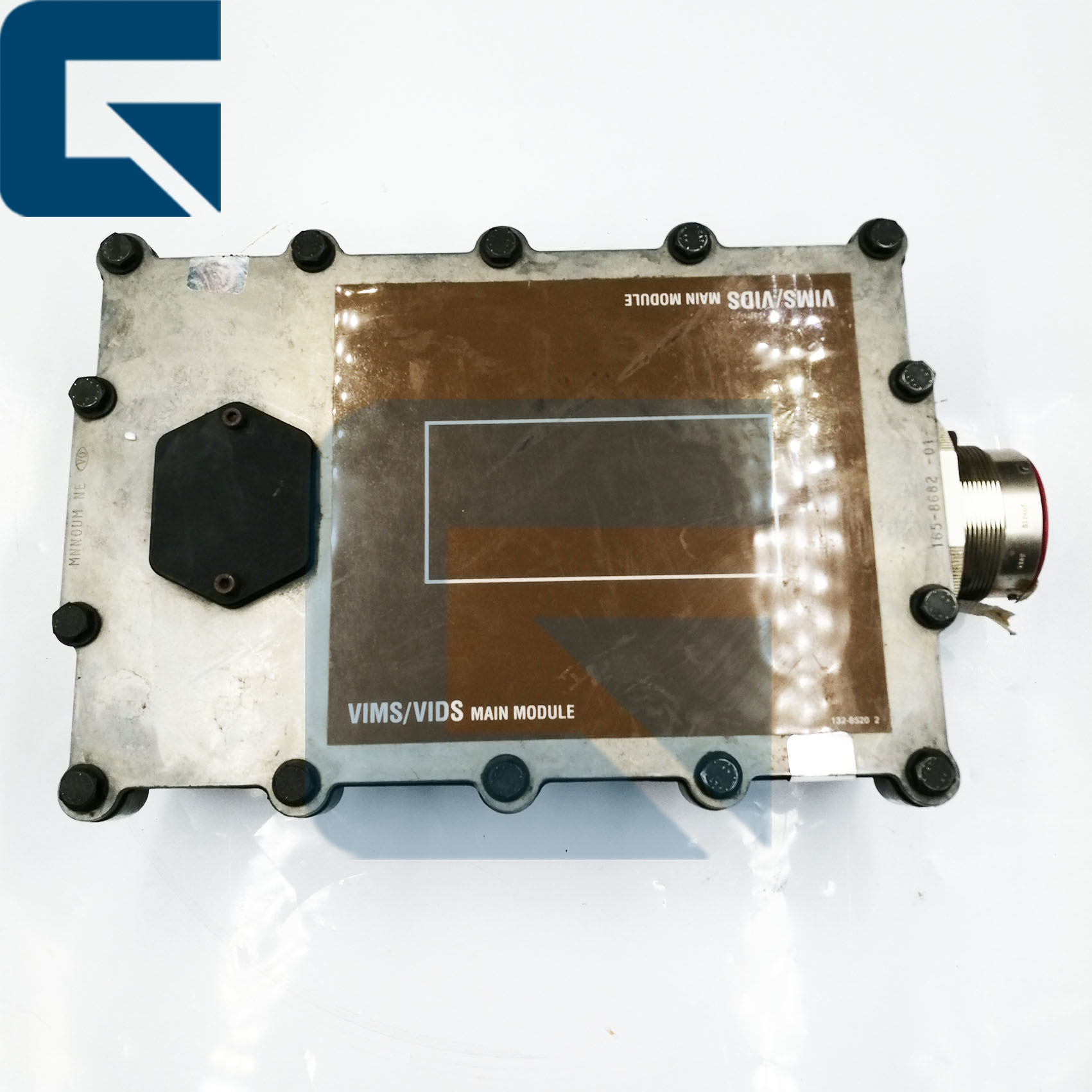

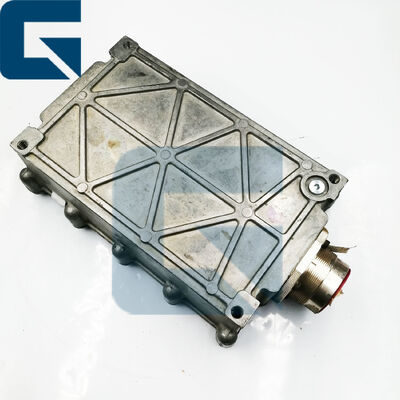

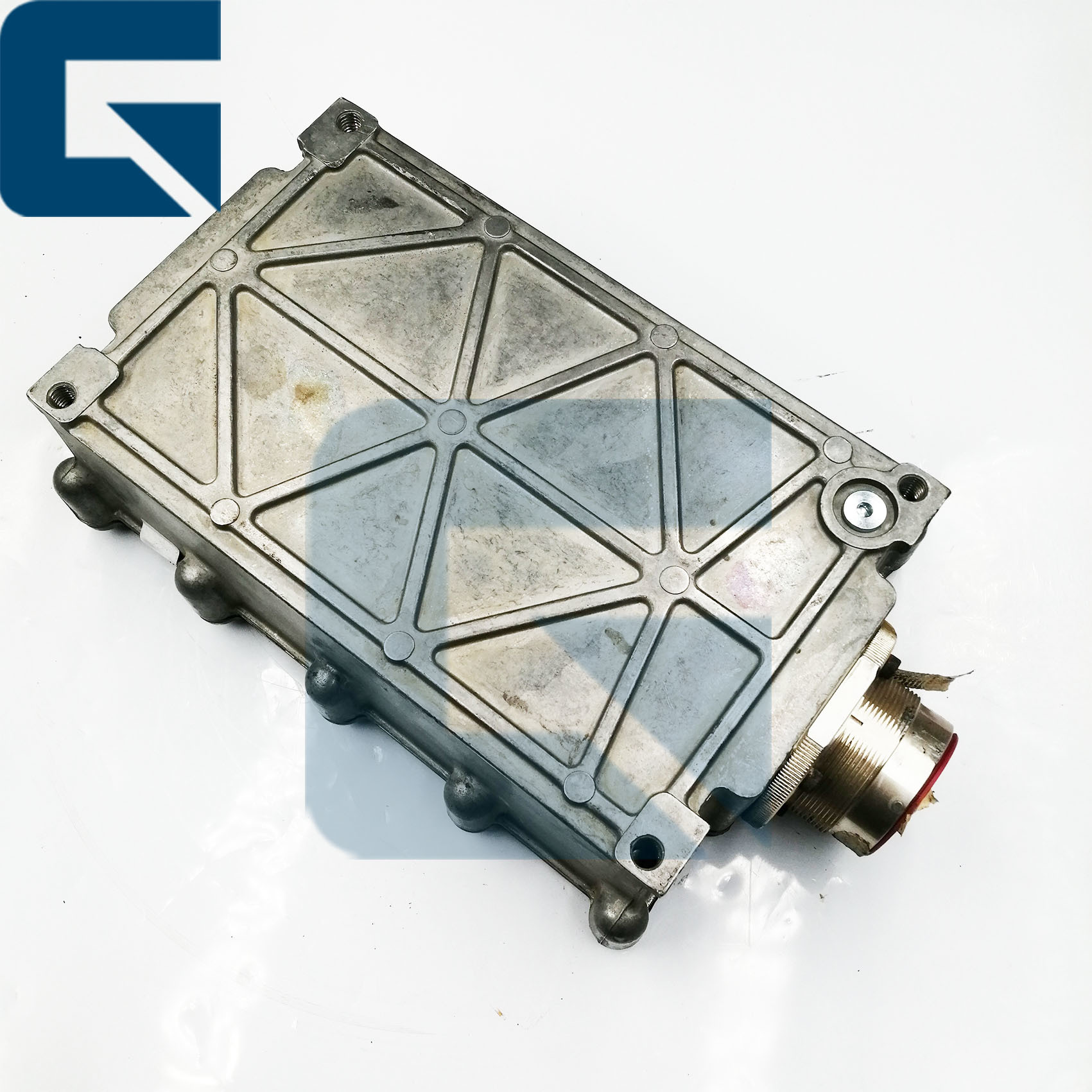

Product Images
165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts 0 165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts 1 165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts 2 165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts 3
Related Products
165-8682 1658682 Controller ECU for 5130 Excavator Spare Parts 4
Frequently Asked Questions
Q1: How long does it take to install the ECM on machine?
  • Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
  • Programming & Testing: 30-60 minutes.
Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.
Q2: How to determine if the ECM is faulty and needs replacement?
  • The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
  • Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
  • Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
  • Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.
Q3: What's your payment method?

Our payment methods include T/T, L/C, PayPal, etc.

Q4: Do you have stock?

Rich stock available.

Q5: How can I know my order is already shipping?

When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.

Step-by-Step Testing Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
  2. Inspect: Check the ECU for physical damage or loose connections.
  3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
  4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
  5. Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
  6. Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
  7. Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
  8. Document: Keep a record of all tests, codes, and results for future reference.
Quick Checklist for Buyers
Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
