0445 120 067 0445120067 Fuel Injector for EC210 Engine

基本情報
起源の場所: 中国
ブランド名: Jiajue
モデル番号: EC210
最小注文数量: 1PC
価格: $180/pc
パッケージの詳細: 0445 120 067 0445120067 EC210 エンジン用燃料インジェクターは、顧客の要求に応じて標準輸出梱包で梱包されています
受渡し時間: 1~5営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、
供給の能力: 100個/月
詳細情報
製品名: 0445 120 067 0445120067 EC210 エンジン用燃料インジェクター 材料: 鋼鉄
起源の場所: 広東省、中国 MOQ: 1
OEM: サポート
ハイライト:

EC210 diesel fuel injector

,

0445120067 fuel injector replacement

,

EC210 engine fuel injector part


製品の説明

0445 120 067 Fuel Injector for EC210 Engine
High-performance fuel injector designed specifically for EC210 engines, ensuring optimal fuel delivery and engine performance.
Product Specifications
Product NameFuel Injector
Part Number0445 120 067
Engine ModelEC210
TypeEngine Parts
Place of OriginGUANGZHOU
Brand NameJIAJUE
Minimum Order Quantity1 Piece
ConditionNew
AvailabilityRich Stock
Approximate Weight1KG
Size (per piece)20cm x 5cm x 8cm
Warranty3 Months
ShipmentDispatched within 3 days

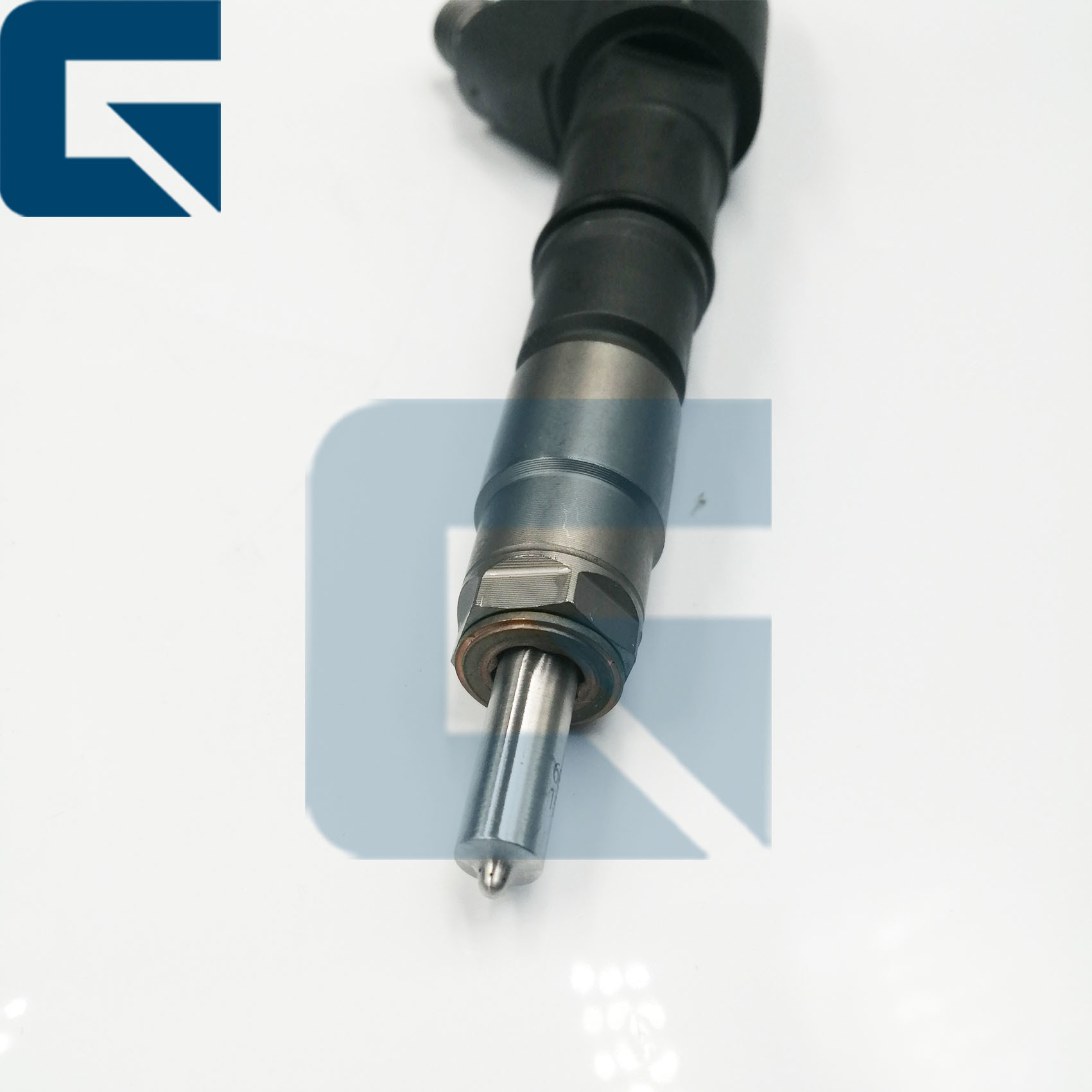

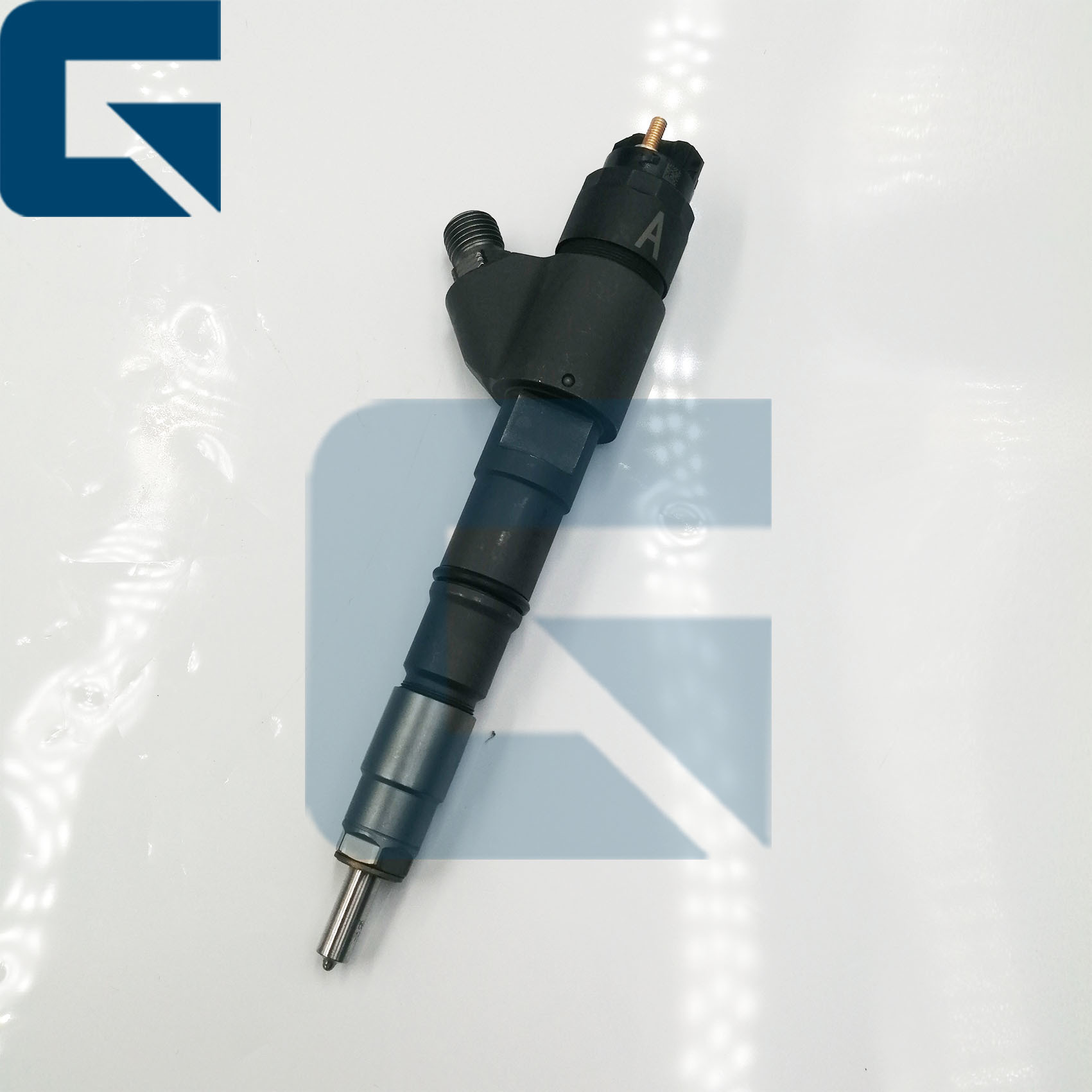

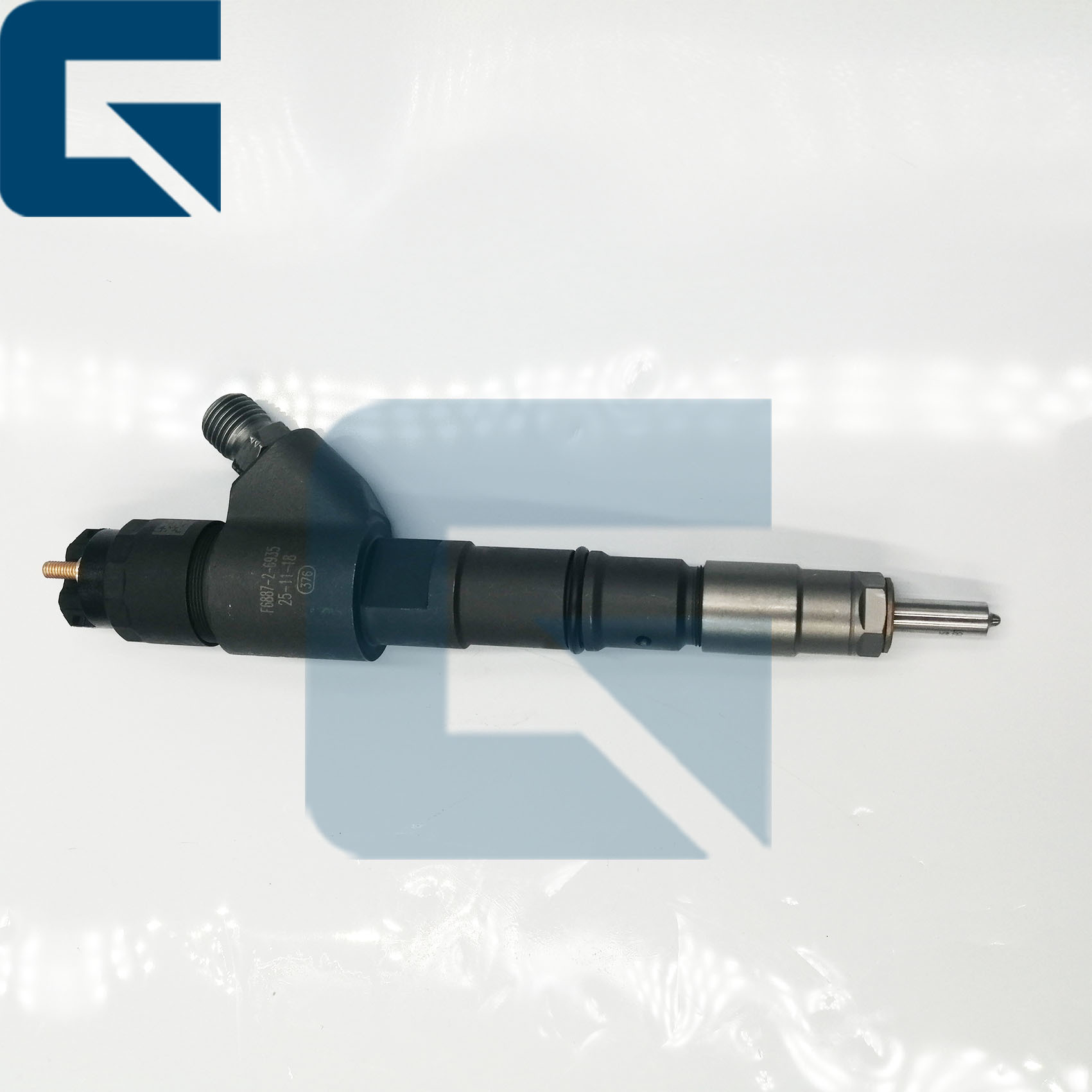

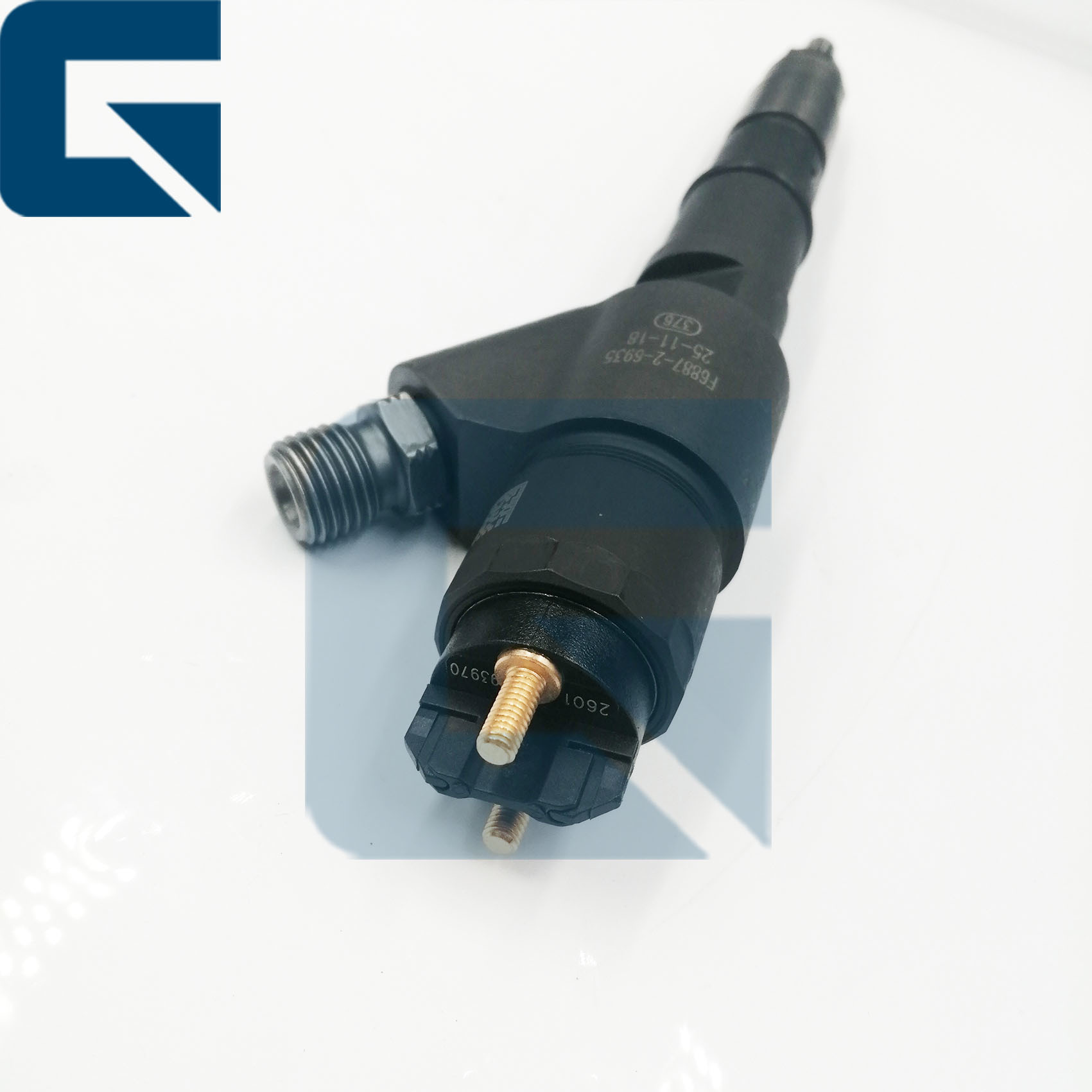

Product Images
Related Products
0445 120 067 0445120067 Fuel Injector for EC210 Engine 4
610-2300 6102300 Diesel Common Fuel Injector for C7.1 Engine
Frequently Asked Questions
How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.
What precautions should I take before installing my fuel injector?
The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; ensure the O-ring is installed correctly.
Why is my engine still unusable after replacing the fuel injector?
This is common due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.
Is my device compatible with this part number of fuel injectors?
If unsure about compatibility, send us your Engine Serial Number (ESN) for free verification.
How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations.
  • Fuel Rail Pressure Test: Check for internal leaks preventing system pressure buildup.
  • Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
  • Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.
How long will it take to receive my package after payment?
Delivery time depends on your country/region and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.
Step-by-Step Installation Guide
HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  • Preparation: Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.
  • Lubrication: Apply clean engine oil to the three O-rings and backup rings. Warning: Never use grease. Only use clean engine oil to ensure seals slide in without tearing.
  • Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
  • Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
  • Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.
Troubleshooting Guide
Issue Root Cause Solution
Black Smoke Poor spray atomization or stuck needle valve causing dripping Inspect the air filter
Hard Start Internal leakage in the injector leading to insufficient starting oil pressure Inspect the injector O-rings and internal seals
Engine Misfire Faulty solenoid valve coil or worn internal valve components Inspect wiring harness connections and replace damaged injectors
