ホーム > 製品> 掘削機の付属品> 521-8373 5218373 Controller ECU ECM for Engine Parts

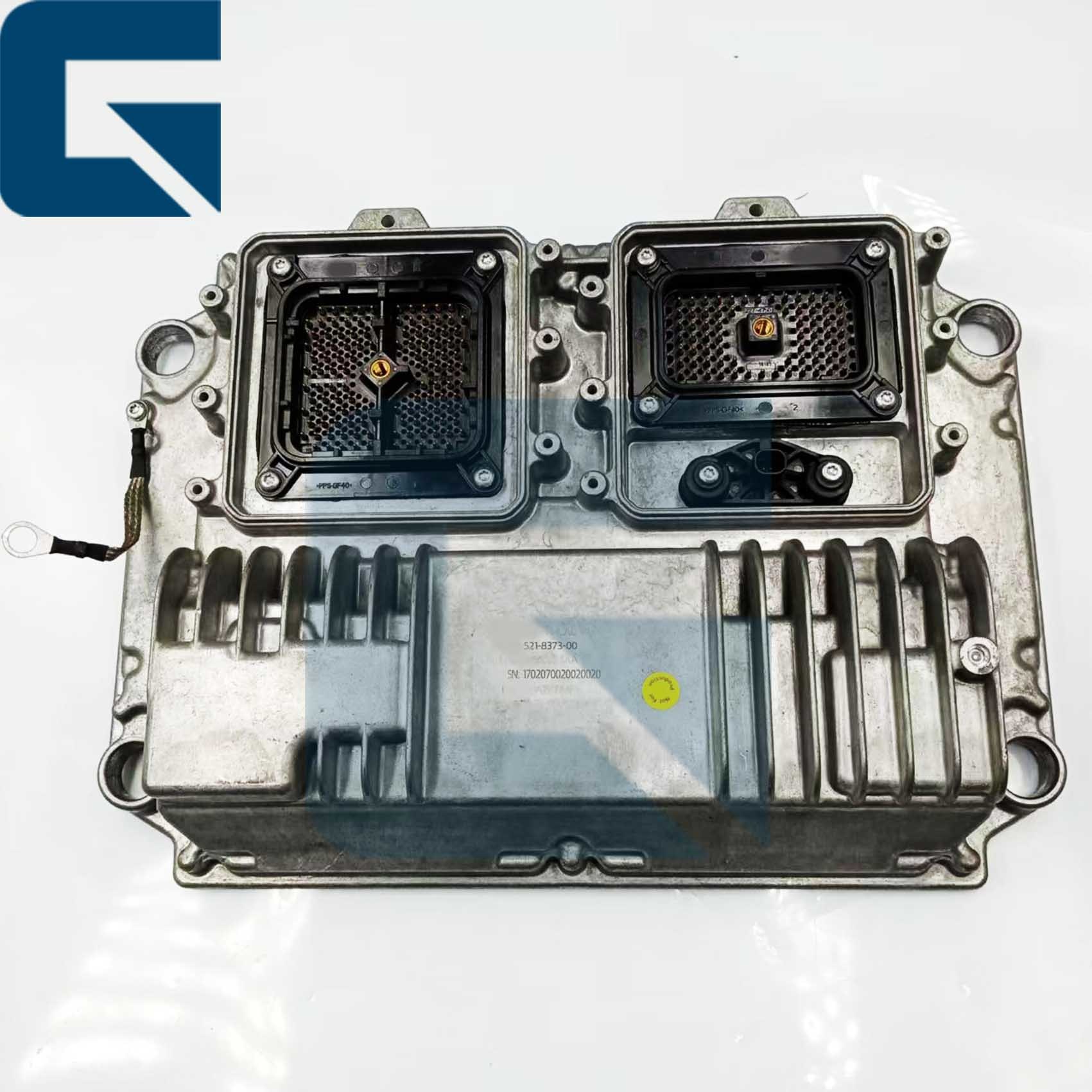

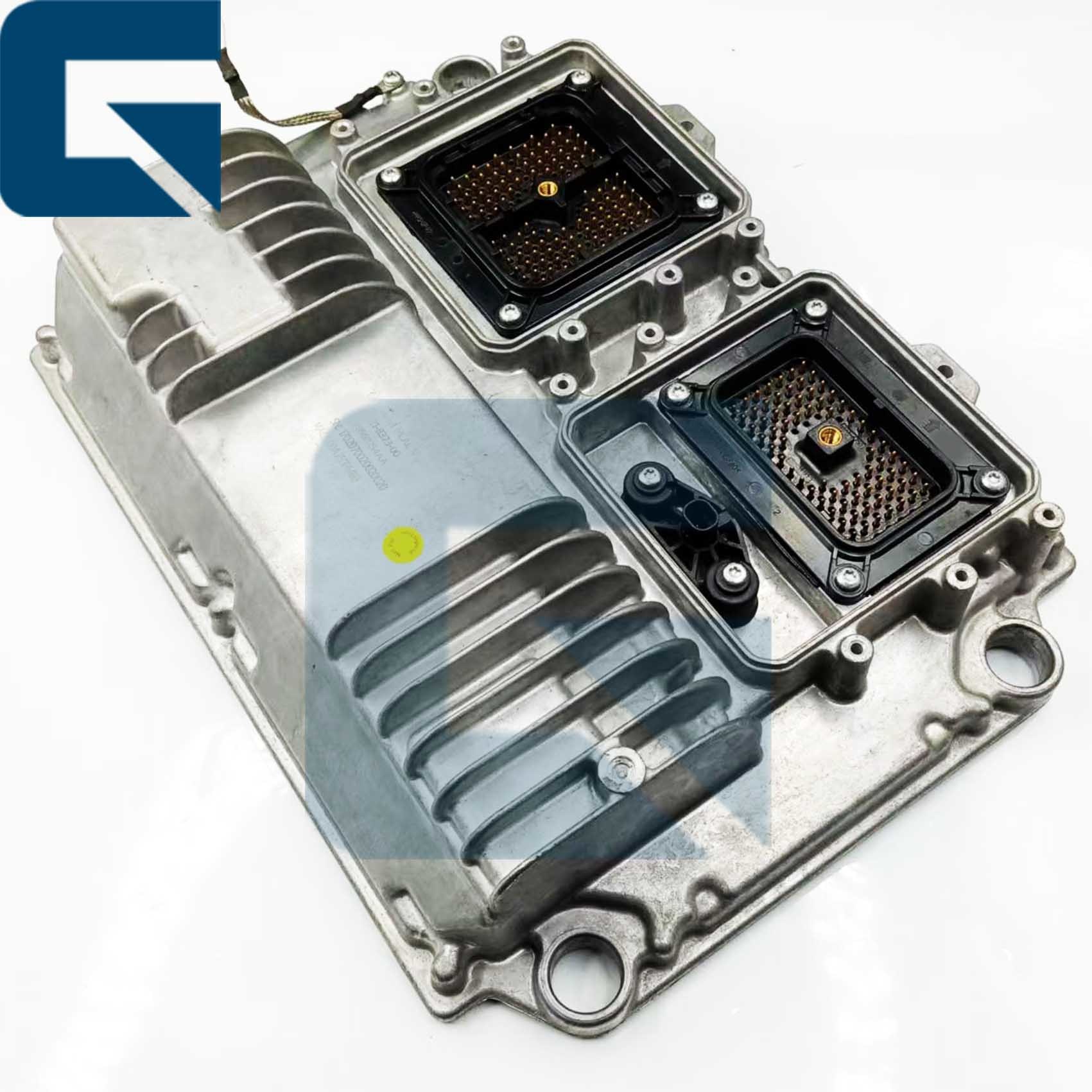

521-8373 5218373 Controller ECU ECM for Engine Parts

521-8373 5218373 Controller ECU ECM for Engine Parts
521-8373 5218373 Controller ECU ECM for Engine Parts 521-8373 5218373 Controller ECU ECM for Engine Parts 521-8373 5218373 Controller ECU ECM for Engine Parts 521-8373 5218373 Controller ECU ECM for Engine Parts
基本情報
起源の場所: 中国
ブランド名: JIAJUE
最小注文数量: 1
価格: Please send mail or WhatsApp
パッケージの詳細: 521-8373 5218373 エンジン部品用コントローラー ECU ECM は、顧客の要求に応じて標準輸出梱包で梱包されます
受渡し時間: 1 営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力: 1000個/月
ベストプライス 接触
詳細情報
部品番号: 521-8373 MOQ: 1
ハイライト:

Excavator engine controller ECU

,

521-8373 engine control module

,

ECM for excavator engine parts

製品の説明

521-8373 Controller ECU ECM for Engine Parts
High-quality 521-8373 Controller ECU ECM designed for reliable engine performance and compatibility with various industrial machinery.
Product Specifications
Product Name Controller
Part Number 521-8373
Brand Name JIAJUE
Condition New
Availability Rich Stock
Delivery Time Usually delivered within 1-3 days after payment
Approximate Weight 4KG
Size (per unit) 20cm x 30cm x 8cm
Delivery Methods DHL, FedEx, TNT, UPS
Shipment Dispatched within 24-48 hours
Payment Methods TT, Western Union, Credit Card, PayPal
Product Testing & Quality Verification
521-8373 5218373 Controller ECU ECM for Engine Parts 0 521-8373 5218373 Controller ECU ECM for Engine Parts 1
Compatible Products
521-8373 5218373 Controller ECU ECM for Engine Parts 2
Frequently Asked Questions
How long does it take to install the ECM on machine?
  • Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
  • Programming & Testing: 30-60 minutes.
Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.
How to determine if the ECM is faulty and needs replacement?
  • The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
  • Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
  • Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
  • Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.
What's your payment method?
Our payment methods include T/T, L/C, PayPal, etc.
Do you have stock?
Rich stock available.
How can I know my order is already shipping?
When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.
Step-by-Step Testing Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
  2. Inspect: Check the ECU for physical damage or loose connections.
  3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
  4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
  5. Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
  6. Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
  7. Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
  8. Document: Keep a record of all tests, codes, and results for future reference.
Quick Checklist for Buyers
Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
Customer Reviews
521-8373 5218373 Controller ECU ECM for Engine Parts 3
Company Profile
521-8373 5218373 Controller ECU ECM for Engine Parts 4
Exhibition
521-8373 5218373 Controller ECU ECM for Engine Parts 5 521-8373 5218373 Controller ECU ECM for Engine Parts 6
Factory Environment
521-8373 5218373 Controller ECU ECM for Engine Parts 7
Packaging & Shipping
521-8373 5218373 Controller ECU ECM for Engine Parts 8 521-8373 5218373 Controller ECU ECM for Engine Parts 9
