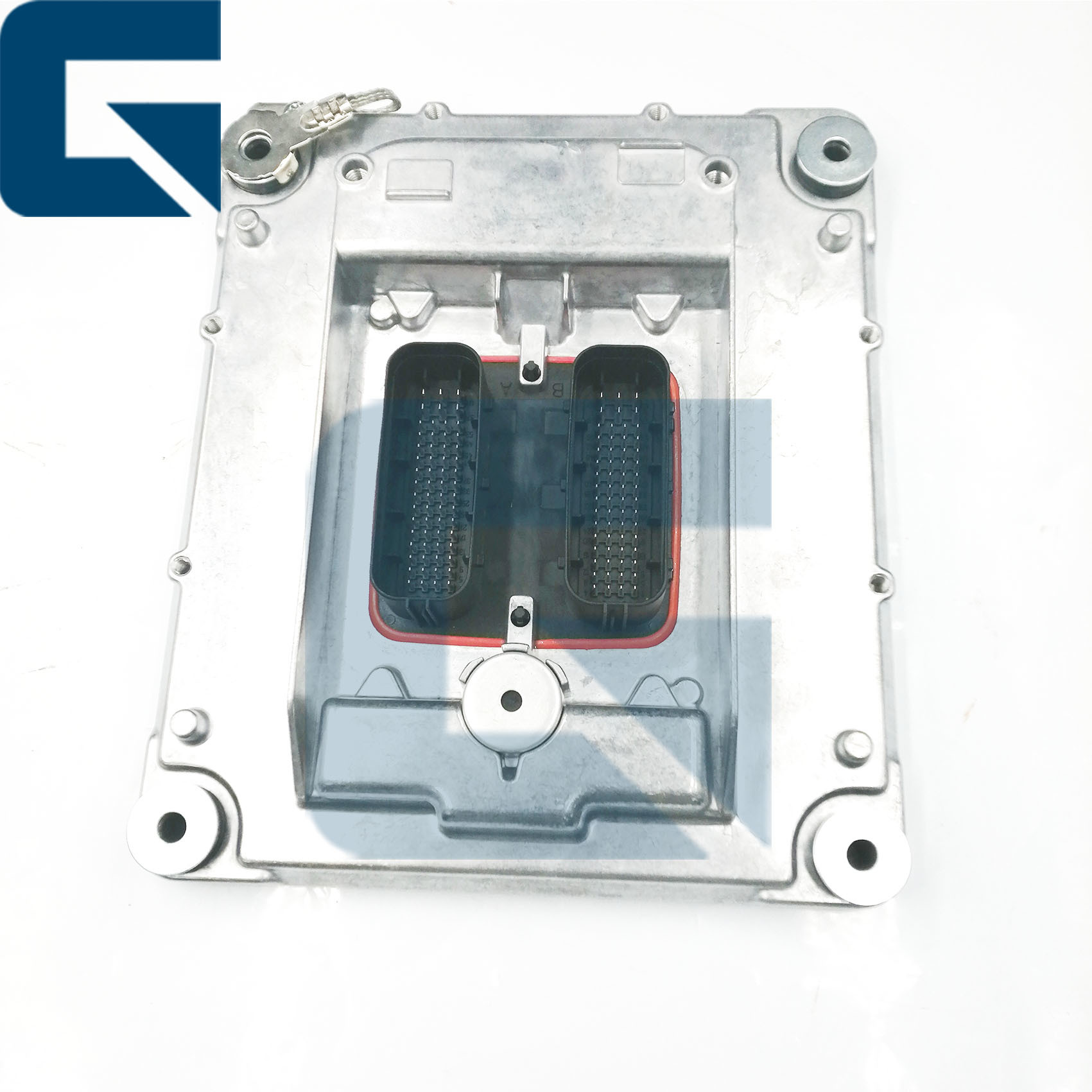

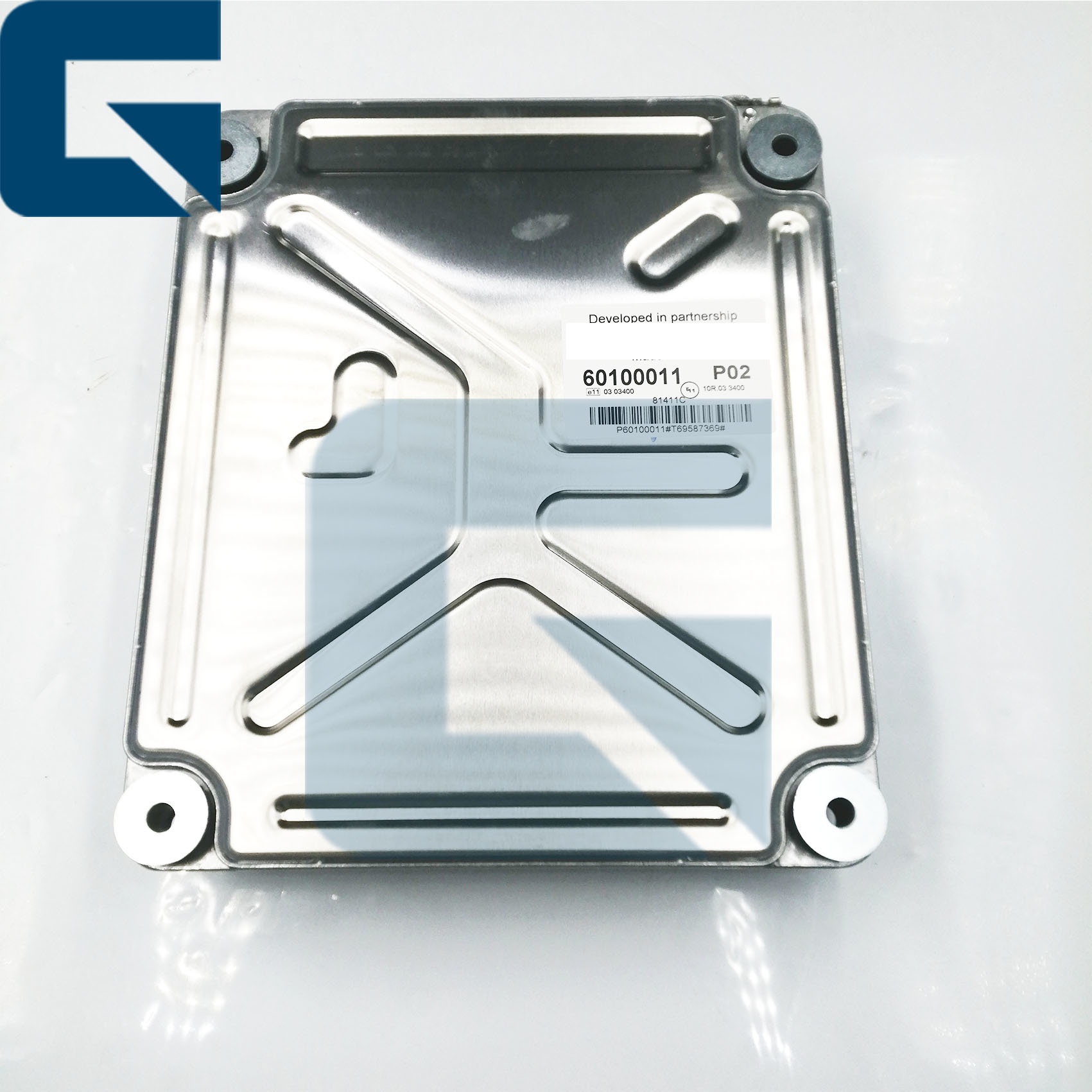

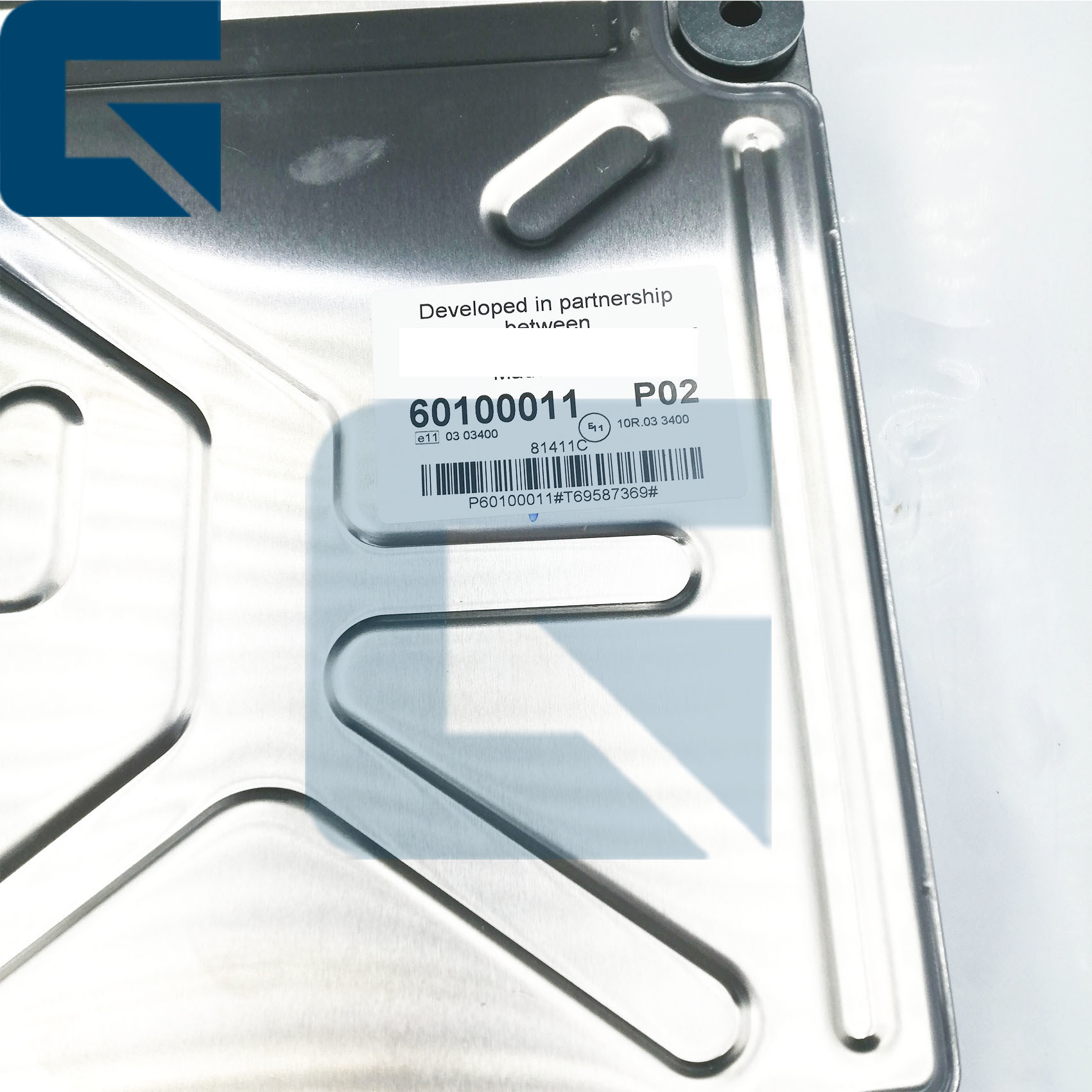

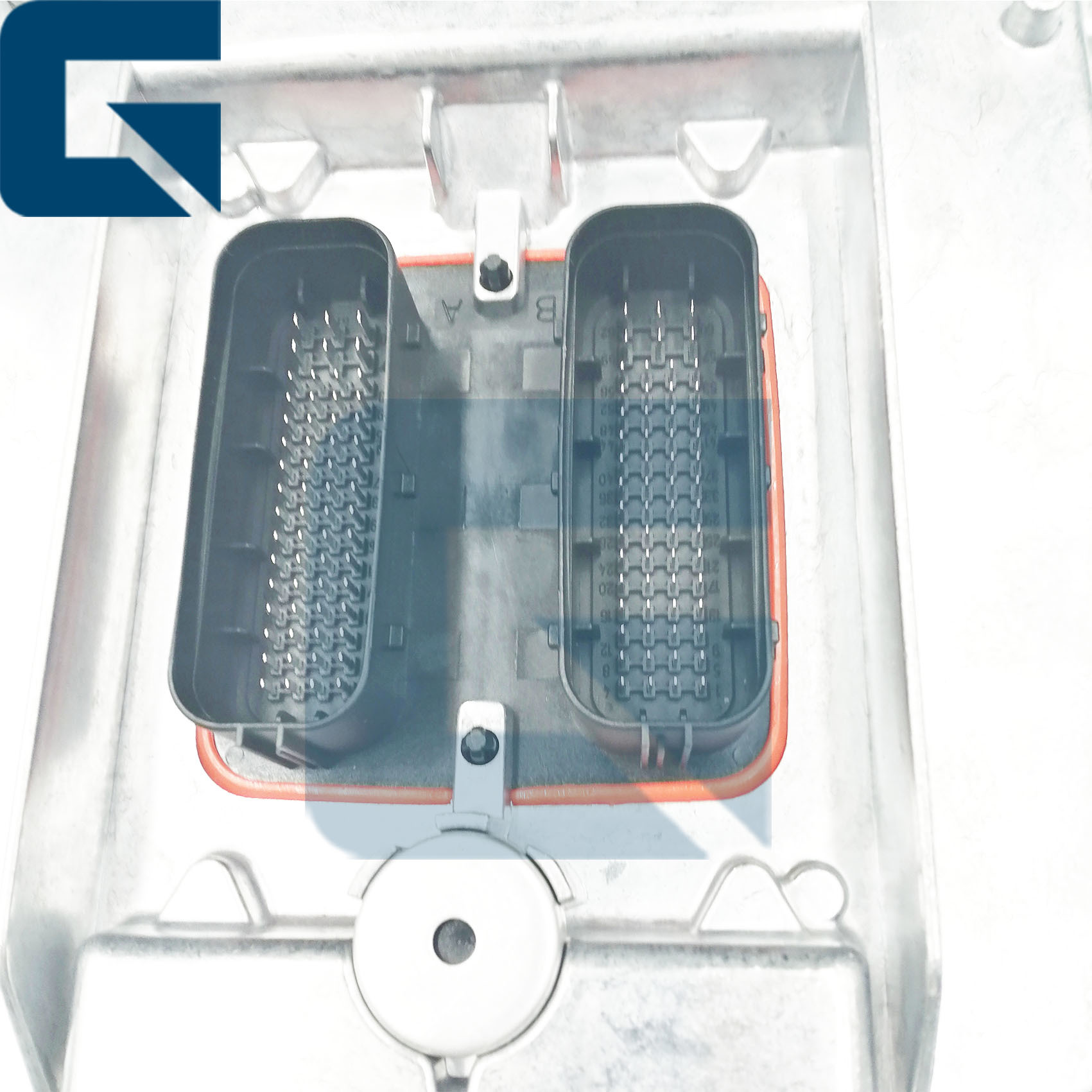

VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts

VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts
VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts
基本情報
起源の場所: 中国
ブランド名: JIAJUE
モデル番号: EC220DL
最小注文数量: 1
価格: Please send mail or WhatsApp
パッケージの詳細: VOE60100011 60100011 EC220DL 掘削機部品用コントローラ ECU は、顧客の要件に基づいて標準輸出梱包で梱包されています
受渡し時間: 1 営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、
供給の能力: 1000個/月
ベストプライス 接触
詳細情報
部品番号: VOE60100011 MOQ: 1
ハイライト:

EC220DL excavator controller ECU

,

excavator parts ECU with warranty

,

VOE60100011 excavator controller replacement

製品の説明

VOE60100011 Controller ECU for EC220DL Excavator
High-quality replacement controller ECU specifically designed for EC220DL excavators. This brand new unit ensures optimal performance and reliability for your heavy equipment.
Product Specifications
Product Name Controller
Part Number VOE60100011
Brand Name JIAJUE
Model EC220DL
Condition Brand New
Availability Rich Stock
Delivery Time Usually delivered within 1-3 days after payment
Approximate Weight 4KG
Size (per unit) 20cm x 30cm x 8cm
Delivery Methods DHL, FedEx, TNT, UPS
Shipment Dispatched within 24-48 hours
Payment Methods TT, Western Union, Credit Card, PayPal
Product Testing & Quality Control
VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 0 VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 1
Compatible Products
VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 2
Frequently Asked Questions
Q1: How long does it take to install the ECM on machine?
  • Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
  • Programming & Testing: 30-60 minutes.
If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.
Q2: How to determine if the ECM is faulty and needs replacement?
  • The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
  • Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
  • Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
  • Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.
Q3: What's your payment method?
Our payment methods include T/T, L/C, PayPal, etc.
Q4: Do you have stock?
Rich stock available.
Q5: How can I know my order is already shipping?
When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.
Step-by-Step Testing Guide
HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
  2. Inspect: Check the ECU for physical damage or loose connections.
  3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
  4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
  5. Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
  6. Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
  7. Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
  8. Document: Keep a record of all tests, codes, and results for future reference.
Quick Checklist for Buyers
Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
Customer Reviews
VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 3
Company Profile
VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 4
Exhibition
VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 5 VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 6
Factory Environment
VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 7
Packaging & Shipping
VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 8 VOE60100011 60100011 Controller ECU for EC220DL Excavator Parts 9
